Data visualization repository

I’m not copying over the old Dataviz thread.

I will put in links to my articles later, but just wanted to grab this:

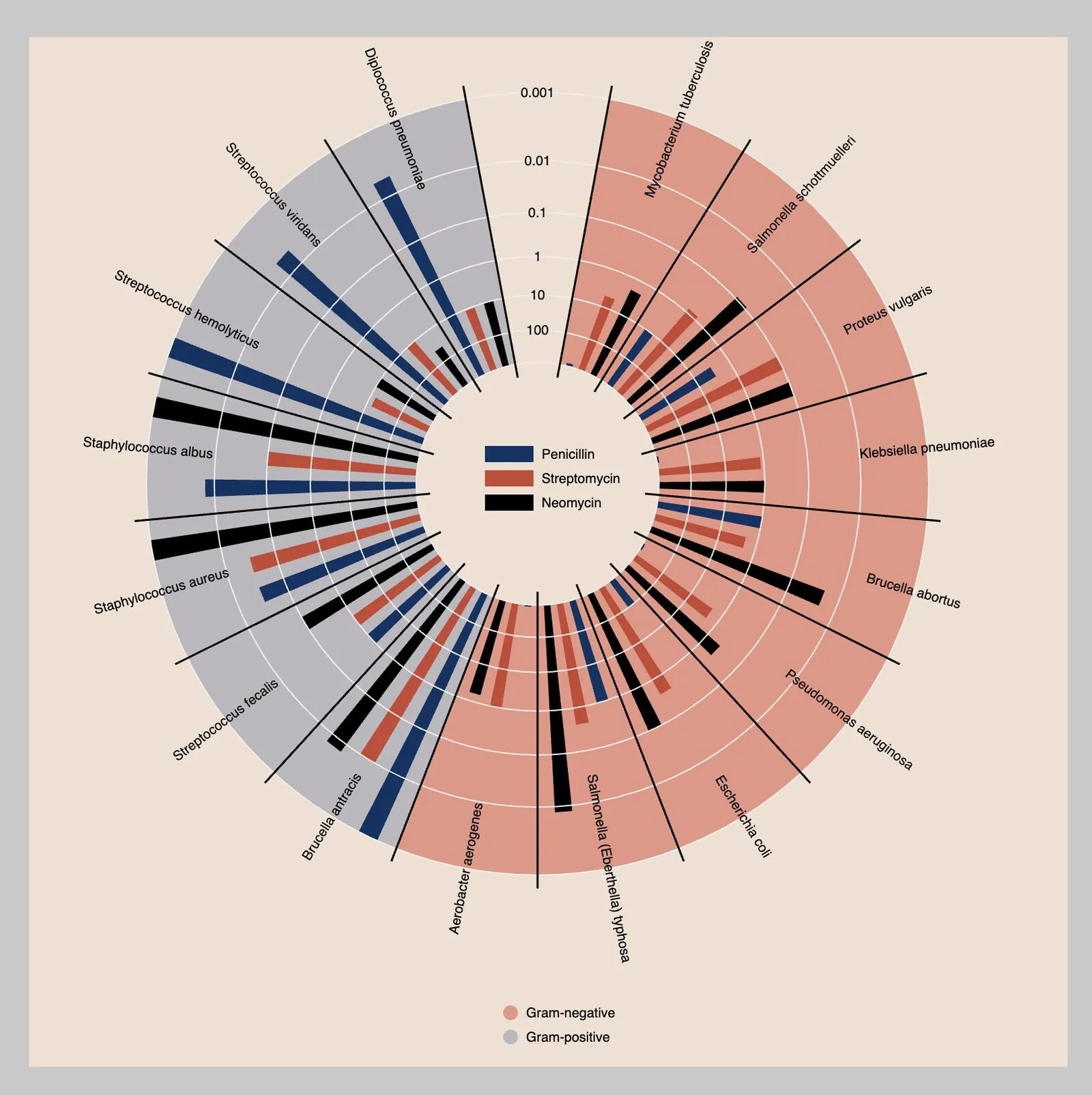

Consider the visualization created by information designer Will Burtin in 1951 to summarize the effectiveness of three antibiotics—penicillin, neomycin, and streptomycin—in treating 13 bacteria. Bacterial species are arrayed in a circular layout, with three bars for each bacterial infection representing the amount of each antibiotic needed to treat it. An inversion of the scale means that longer bars represent more effective antibiotics, aligning with a spontaneous interpretation of bigger is better, while shading behind the bars neatly organizes the bacteria into two groups according to whether they result in a positive or negative gram stain test.

ROUGHLY 30 YEARS after Burtin made his graphic, the dataset he visualized would change. By 1984, scientists had reclassified two of the bacteria after realizing that the diplococcus pneumoniae (shown at roughly 11 o’clock in the display) closely resembled the streptococcus bacteria in their responses to the tested antibiotics, while the responses of the streptococcus fecalis (between 7 and 8 o’clock) were quite different from the other streptococcus. Despite the admiration the graphic received in its time, these errors somehow eluded viewers.

A counterfactual question naturally arises: if Burtin had constructed a more direct, statistical graphic of the dataset—a grouped bar chart, for example—might these scientific errors have been discovered earlier?

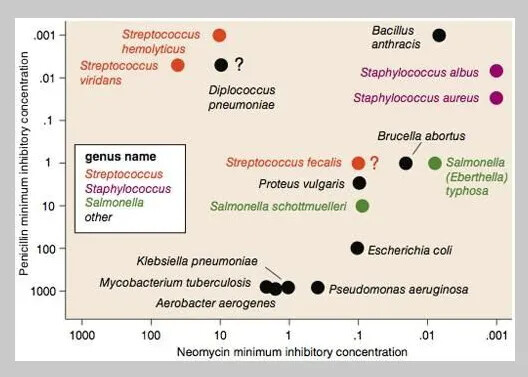

This is the question implied by statisticians Howard Wainer and Shaun Lysen, who, published a more conventional scatterplot, first created by Lawrence Finer and Christian Ryan, to illustrate this point in 2009. Where Burtin chose to emphasize a comparison of antibiotics’ effectiveness, the new design prioritizes a comparison of bacteria to one another. Streptomycin values are omitted based on their close correspondence with neomycin values. Bacteria in the same genus share a color. The two mislabeled bacteria emerge as the suspects through the juxtaposition of color and proximity to other bacteria: Why is fecalis not in the top left corner with the other streptococci? What is pneumoniae doing there instead?


From the Wired article:

That graphic is an unmitigated disaster. I’m not intrigued by it – driven cross-eyed and provoked to irrational anger (that graphic is 1950s medicine’s version of trolling, right?), but not intrigued. At least not about the content of the graphic. I will admit to being intrigued about how anyone could think any aspect of that visualization is a good idea.

There were weird data visualization choices in some of the hand-drawn historical ones I came across.

Florence Nightingale:

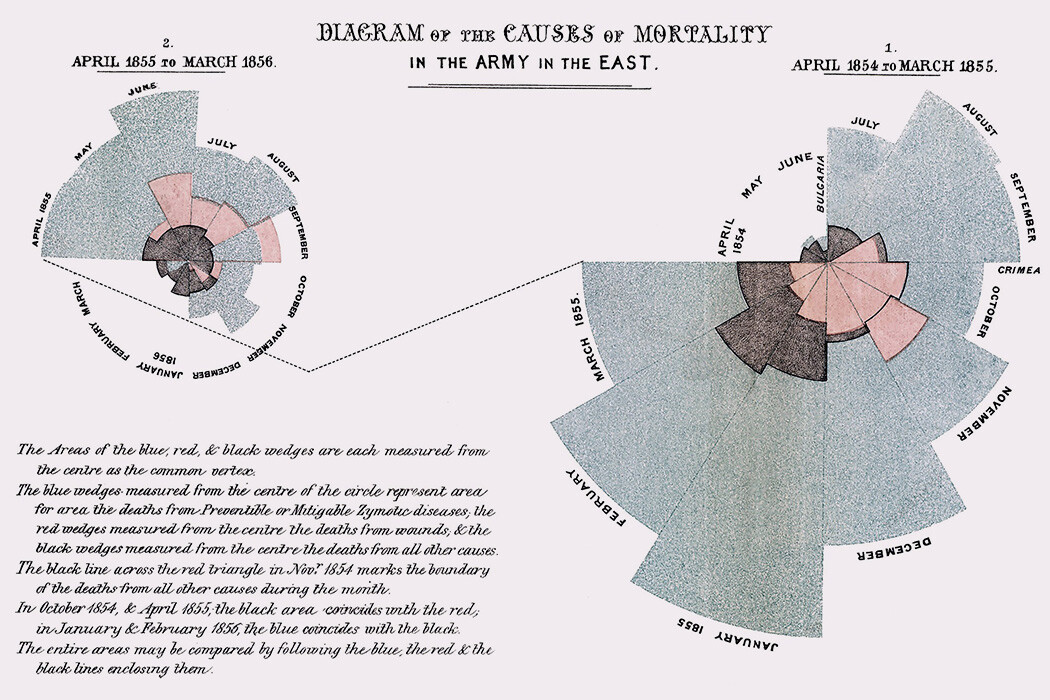

tough to “see”

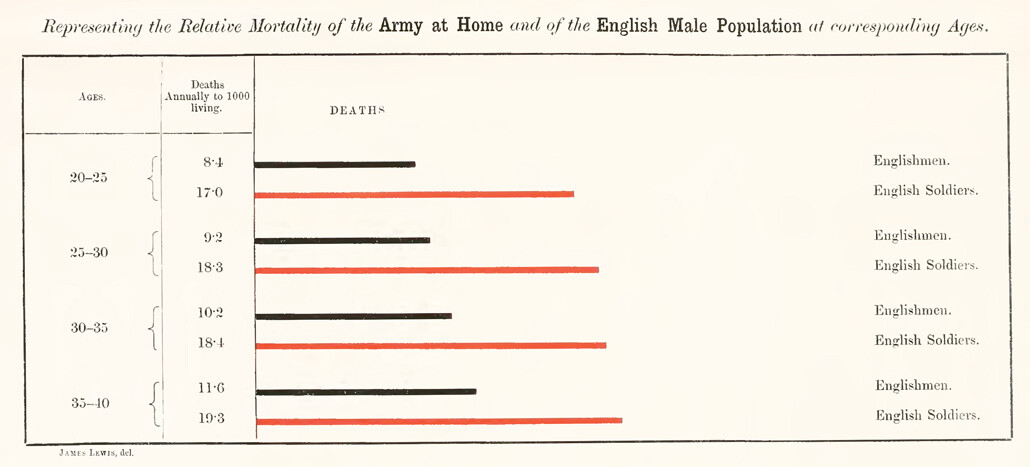

easy to see:

source:

That said, good for her in realizing that drawings like these are more persuasive than tables of numbers.

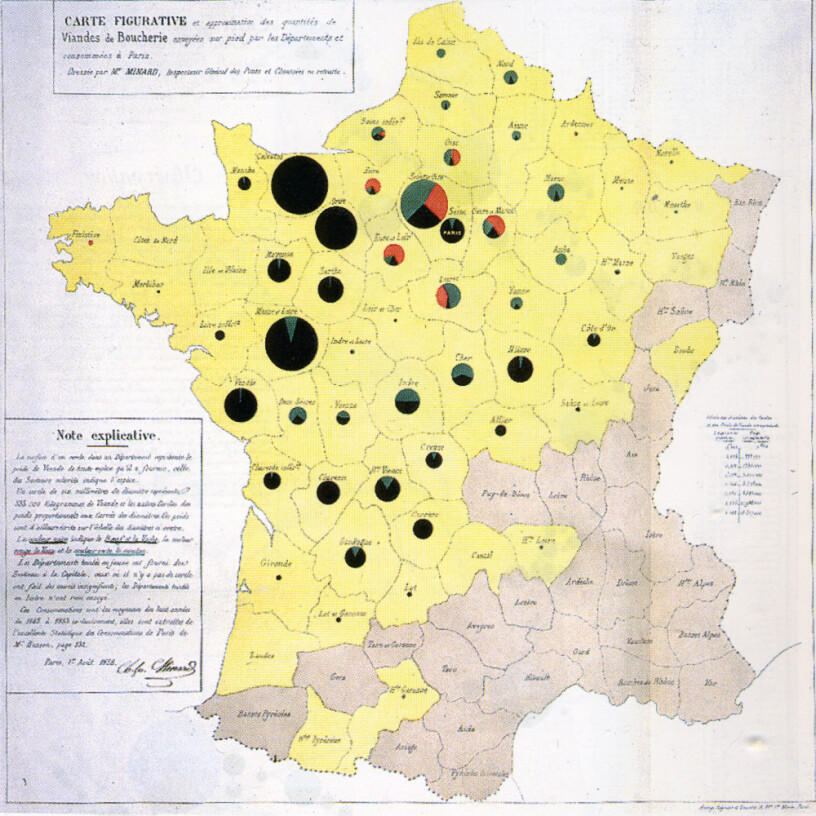

Charles Joseph Minard had that great graph of Napoleon’s march into (and out of) Russia, but then there’s this craptastic cheese map:

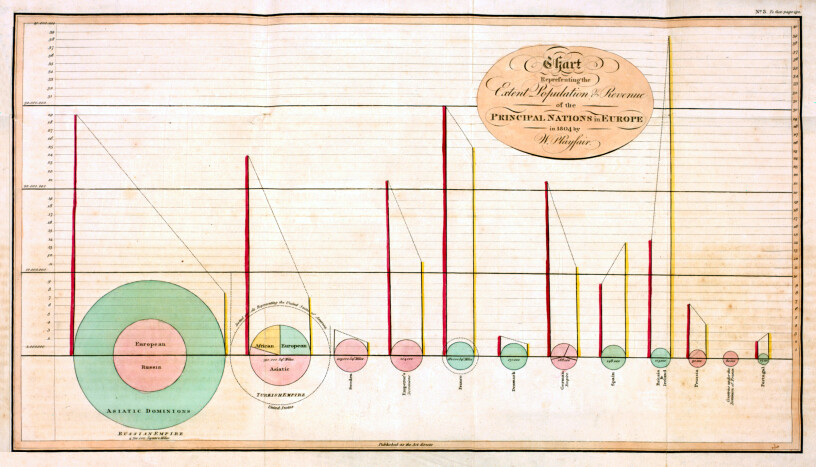

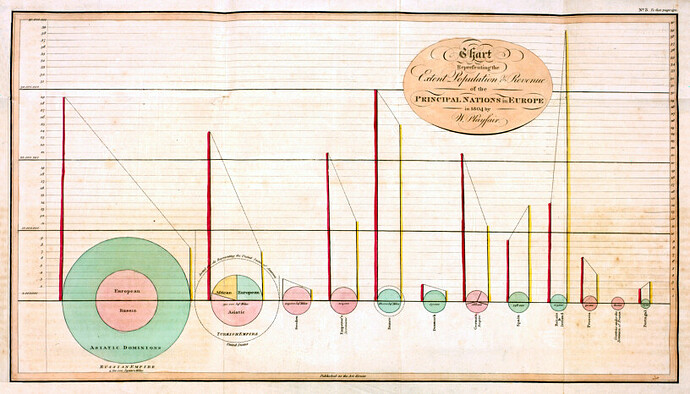

And then Playfair had straightforward ones, and this crap:

To be fair, they were just working on the ideas. But I really dislike pie charts

https://visage.co/data-visualization-101-pie-charts/

Is there a “Crap-tastic Data Visualizations Through The Ages” coffee table book? Because I’d buy that in a heartbeat.

1 Like

GIVE ME TIME!

Hmmm, maybe I should do a “Making Shitty Graphs Better” book. Because a lot of the bad visualizations have good data trends behind them, but poorly displayed.

[thinking]

My old dataviz articles:

Here is an example:


There is a magic in information graphics. Maps float you above the land for a bird’s eye view. Timelines arrange memories on the page for all to see. Diagrams reveal the parts inside without requiring disassembly, or incision.*

❡ Data visualization leapt from its Enlightenment origins and into the minds of the general public in the 1760s. It cast more powerful spells throughout the following century. By 1900, modern science, technology, and social movements had all benefited from this new quantitative art. Its inventions include the timeline, bar chart, and thematic map. Together, these innovations changed how we understand the world and our place within it. Data visualization helped a new imagination emerge, wired to navigate a reality much bigger than any single person’s lived experience.

❡ The sections in this exhibition examine information graphics that show space, time, nature, and society. Many are beautiful. Each is a unique way of seeing still worth our attention. —RJ Andrews, guest curator

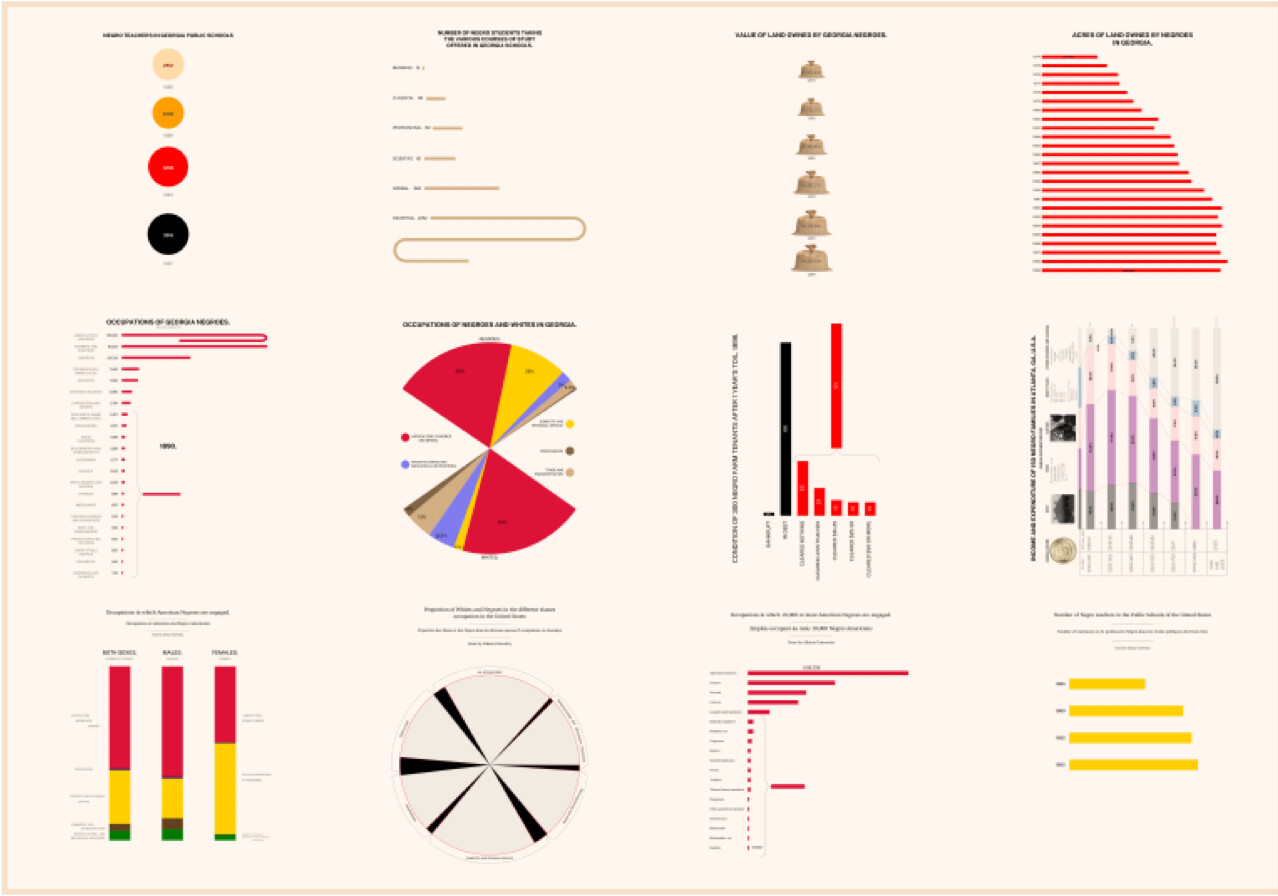

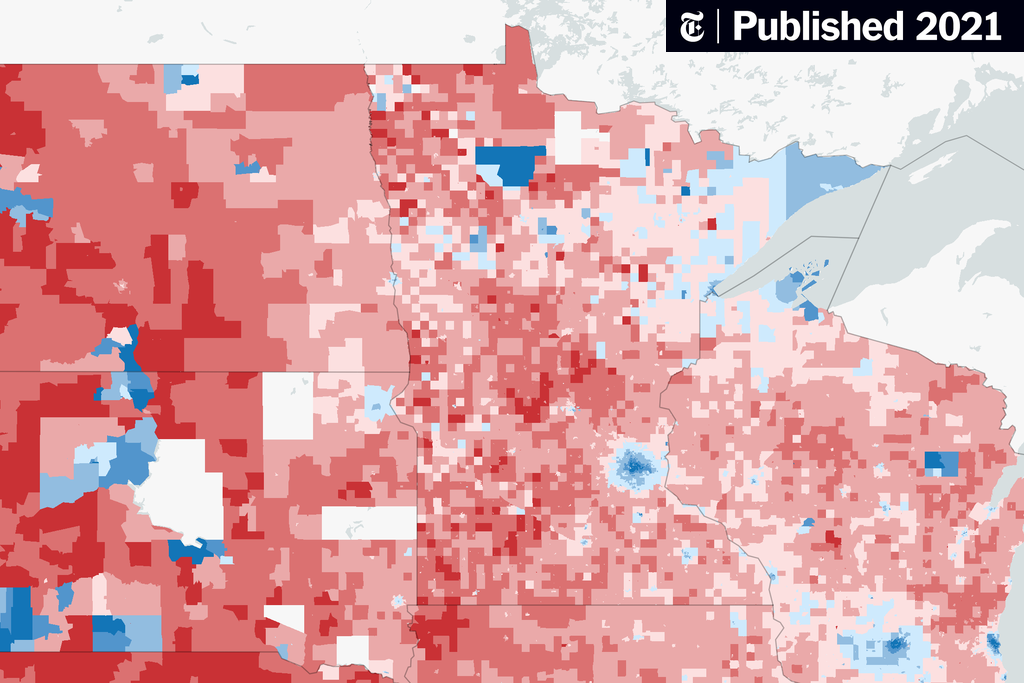

Interesting seeing which counties are missing

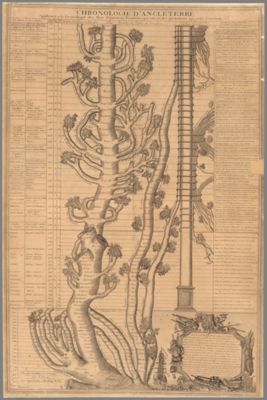

The French language tree map of the British monarchy is cool. If you look down near the bottom you can see the king from the movie The Dig (which I just saw on the weekend).

I’m on an Anglo-Saxon history group on facebook, and they’re all raving about The Dig.

For those who wonder, the direct link to the bit on the British royalty is here:

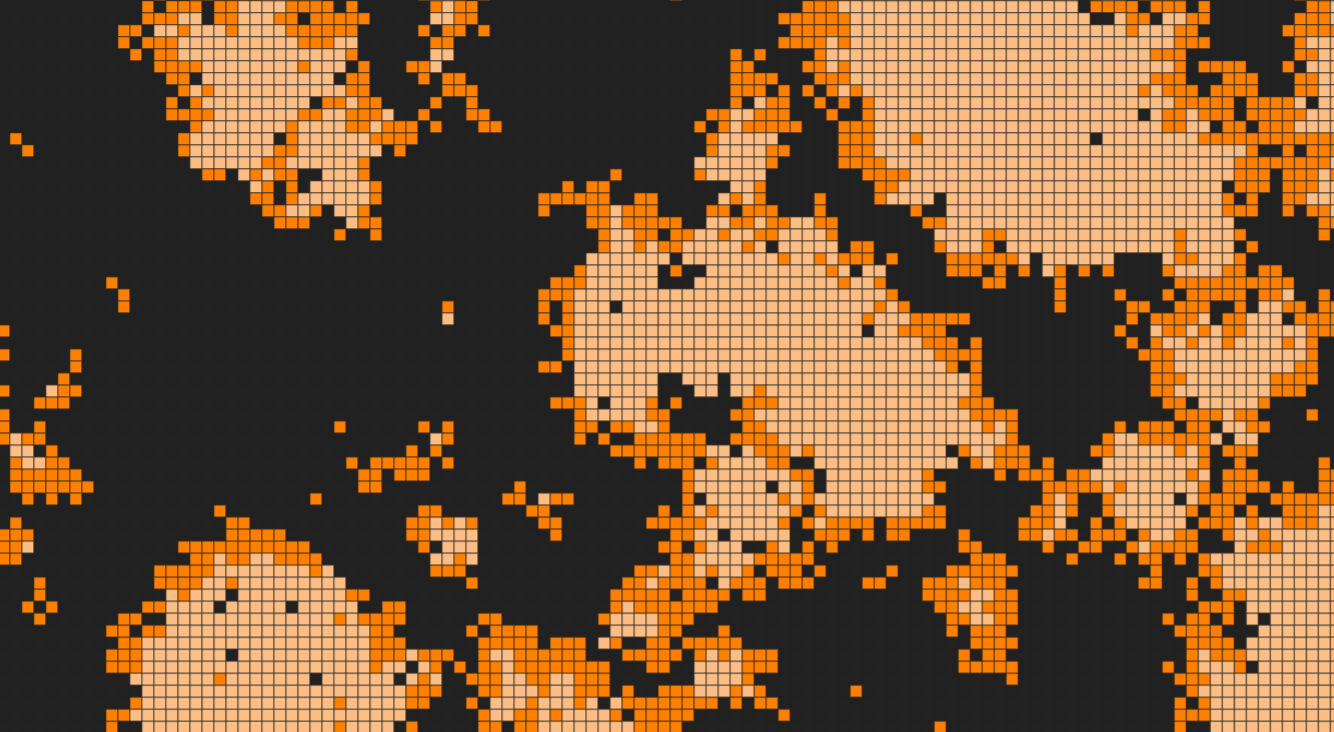

Some interesting visualizations about epidemic spread

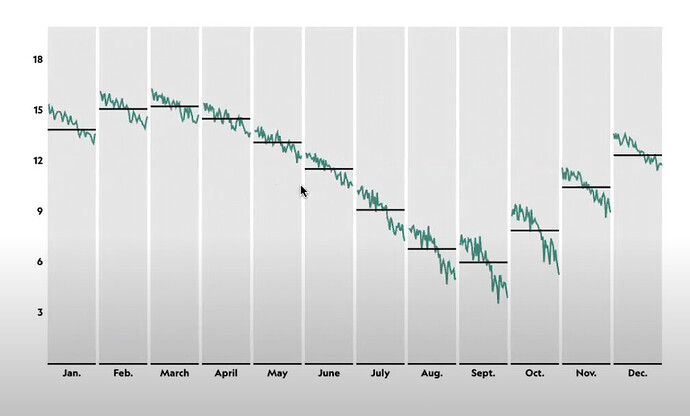

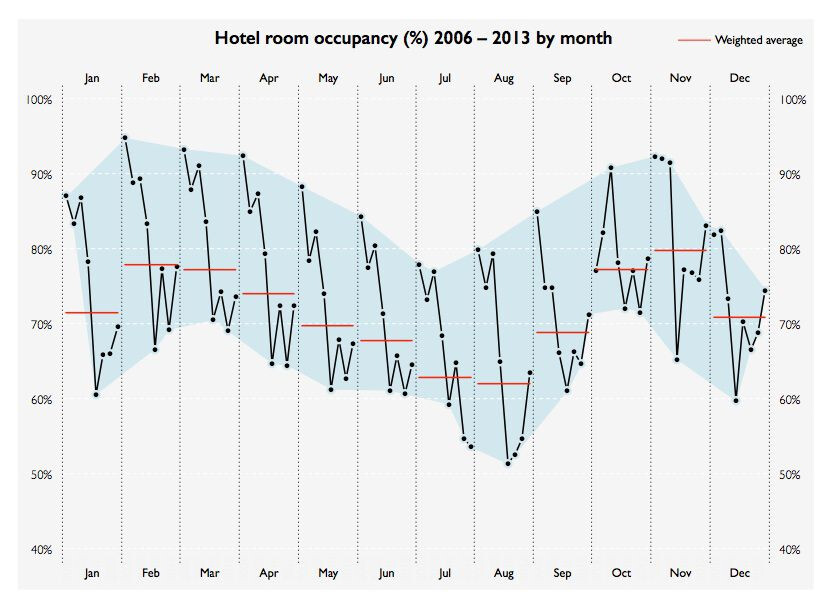

Cycle graphs/plots

New book from PolicyViz guy

References by chapter:

DataViz catalogs:

1 Like

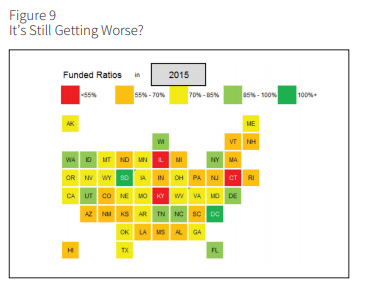

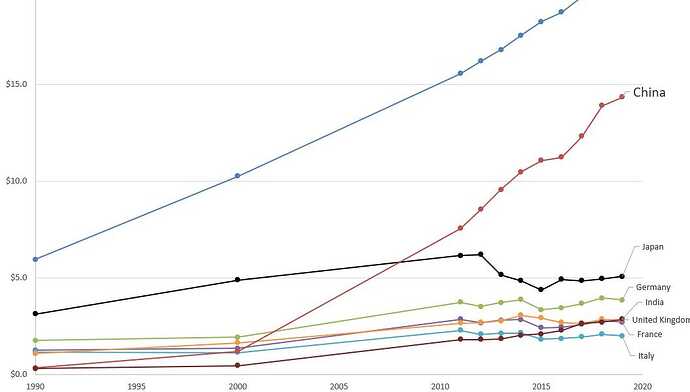

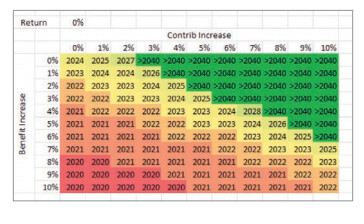

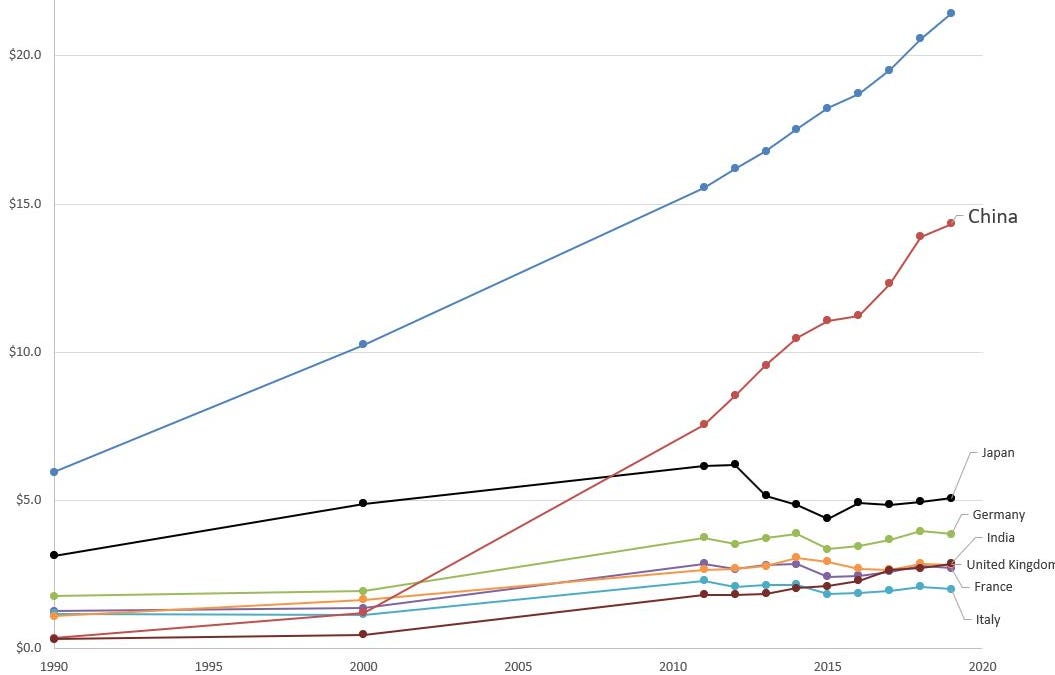

Me getting pissy about GDP ranking:

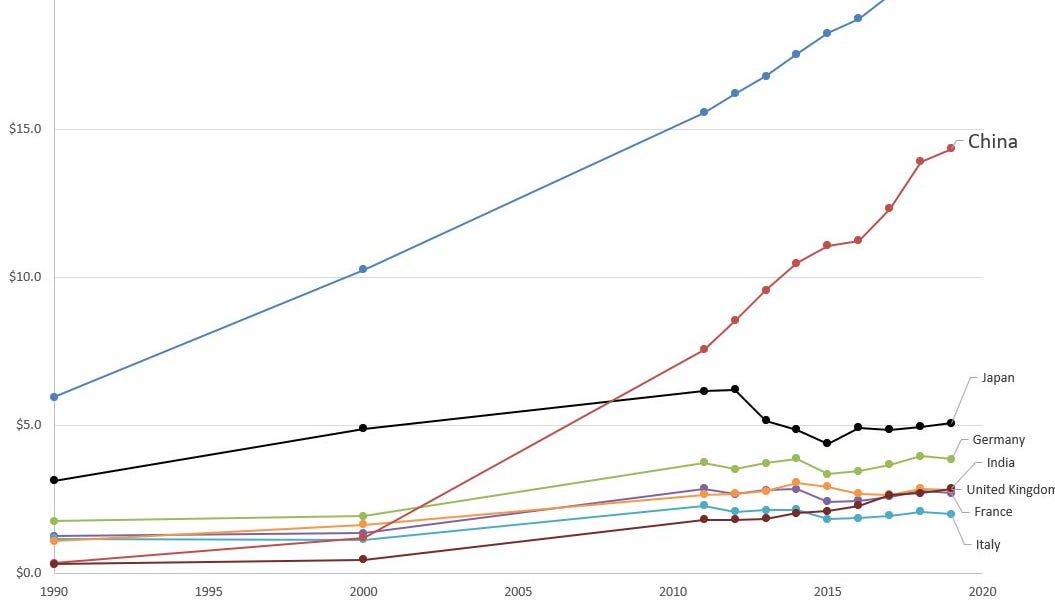

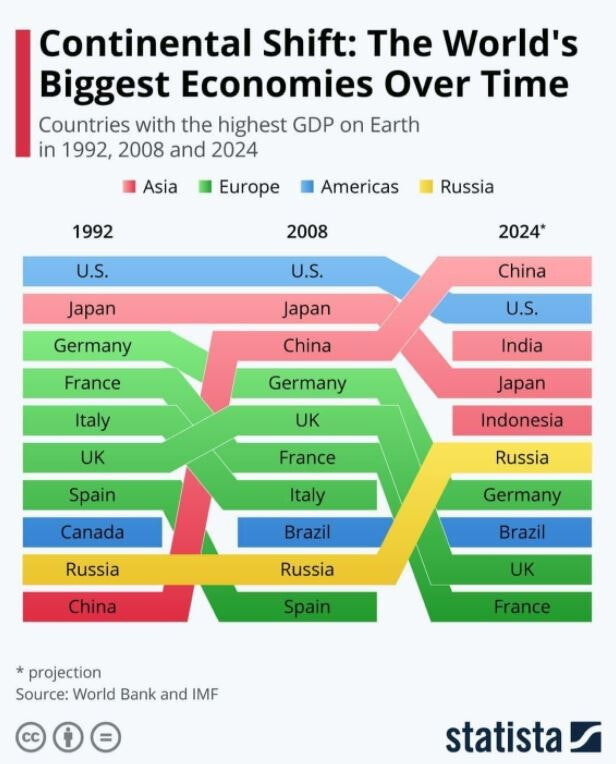

The original graphic I objected to was this one:

This is an episode about the earlier days of data visualization from a podcast series I listen to. It’s longish and doesn’t get to the data viz part until the last third or so. Extra marks if you can guess the famous actress doing the voice of Florence Nightingale - Cautionary Tales – Florence Nightingale and her Geeks Declare War on Death | Tim Harford

1 Like

Well jeez, the page says who it is. Spoilers!
